Making a Blackbody Spectrum

A blackbody spectrum can be made by the MK1DSPEC task in the noao.artdata package. Figure 49 shows an example of IRAF script for making a blackbody spectrum with the same temperature as the standard star and the same wavelength range and image size as the aperture.

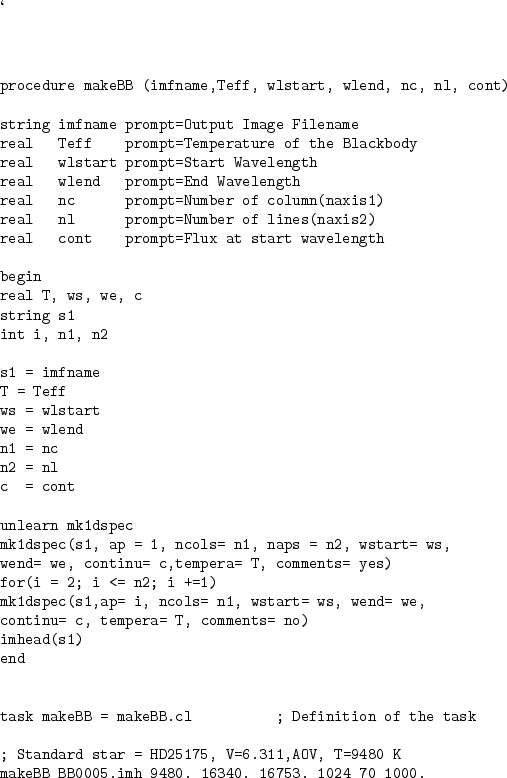

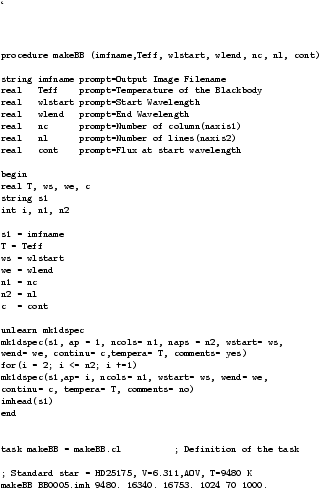

**Figure 49:** A CL script to make a blackbody spectrum with the same width as the aperture.
$\begin{figure} \lq \begin{alltt} \relax{} {\footnotesize procedure mak... ...9480. 16340. 16753. 1024 70 1000. } \relax \end{alltt} \end{figure}$
