Determination of the distortion solution: the REIDENTIFY task

The REIDENTIFY task traces slit images and measure their positions along the spatial direction of the comparison lines which was identified by the IDENTIFY task. This task makes distortion solutions for the comparison lines. Figure 41 shows parameters of the REIDENTIFY task and a result of execution of it.

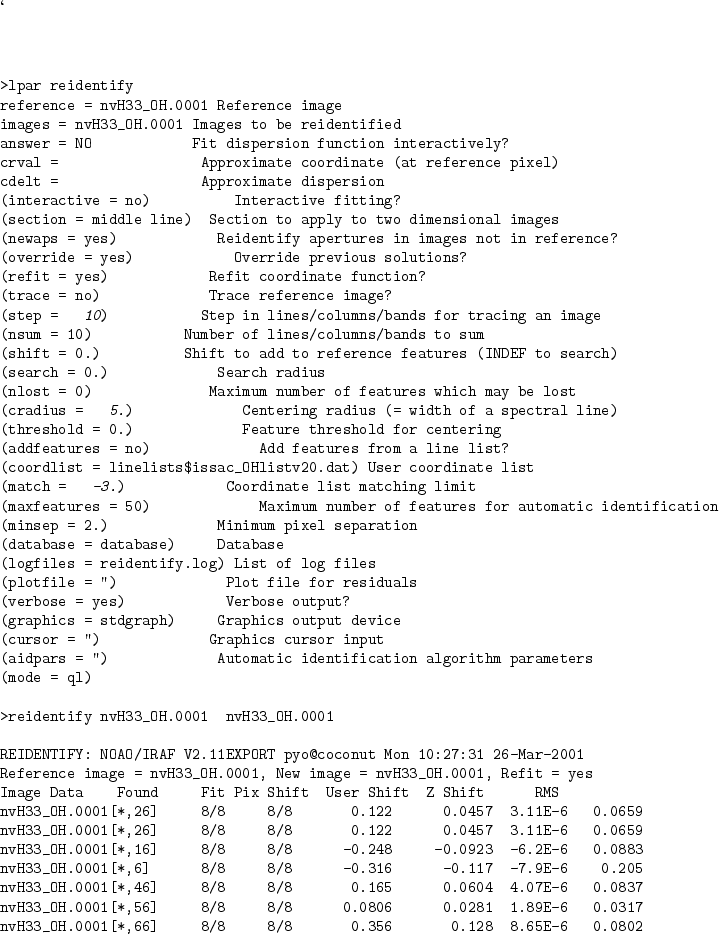

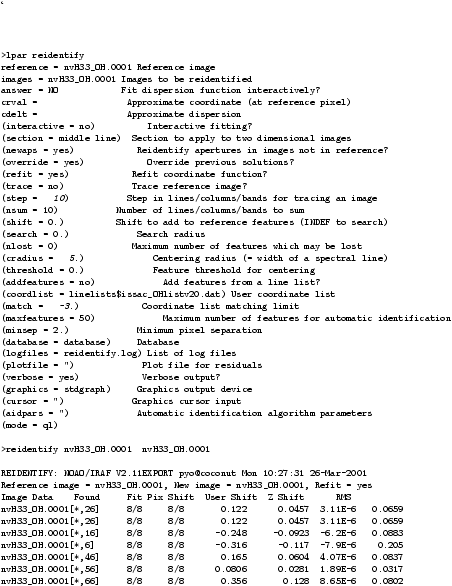

Figure 41: An example of the parameter setting and execution of the REIDENTIFY task. The parameters in italic are critical.
