Apertures of all frames are extracted by the APALL task with the median flat frame as a common reference frame.

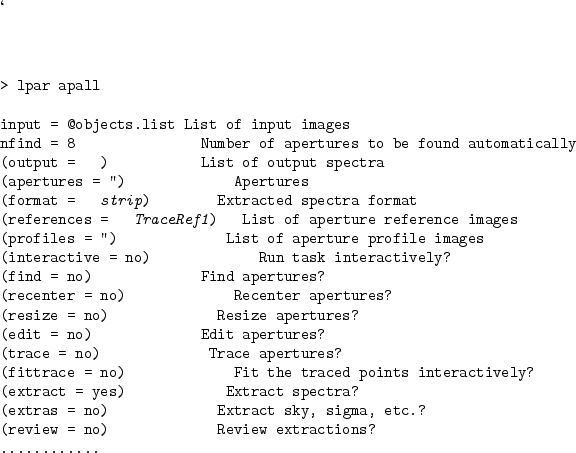

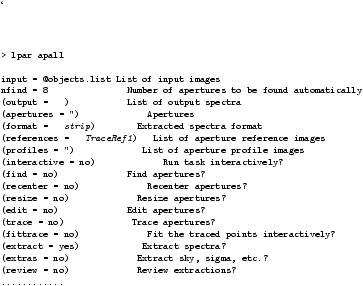

Figure 39 shows the parameter setting as an example.
Figure 39:
Main parameters to extract apertures for all frames with a reference frame.
 |
